Prometheus, Grafana and Loki Installation (Kubeadm)

The following instructions can be used to install Prometheus, Grafana and Loki for a Kubeadmn installation.

Setup Metrics Server for KubeAdm

kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml kubectl edit deploy metrics-server -n kube-system

add the following lines as part of the -args:

command:

- /metrics-server
- --kubelet-insecure-tls
- --kubelet-preferred-address-types=InternalIP

Increase the number of open files allowed on the server

sudo vi /etc/security/limits.conf

add the following lines to the bottom of the file

* hard nofile 1000000
* soft nofile 1000000

Increase inotify limits

udo vi /etc/sysctl.conf

add the following lines to the end of the file

fs.inotify.max_user_instances=8192
fs.inotify.max_user_watches=524288

Apply changes

sudo sysctl --system



Setup Persistent Volumeā€™s

Create Directories

sudo mkdir -p /data/prometheus/pv1 sudo mkdir -p /data/prometheus/pv2 sudo mkdir -p /data/prometheus/pv3 sudo mkdir -p /data/prometheus/pv4

 Edit Permissions

sudo chown -R 65534:65534 /data/prometheus/pv1
sudo chown -R 65534:65534 /data/prometheus/pv2
sudo chown -R 65534:65534 /data/prometheus/pv3
sudo chown -R 65534:65534 /data/prometheus/pv4 | sudo chmod -R 777 /data/prometheus/pv4

Create PVā€™s

vi prometheus-pv.yaml
#Prometheus-pv.yaml
kind: PersistentVolume
apiVersion: v1
metadata:

   name: pv1
spec:

  storageClassName:

  capacity:

      storage: 2Gi

  accessModes:

       - ReadWriteOnce

   hostPath:

         path: "/data/prometheus/pv1"
---
kind: PersistentVolume
apiVersion: v1
metadata:

   name: pv2
spec:

   storageClassName:

   capacity:

     storage: 8Gi

 accessModes:

      - ReadWriteOnce

 hostPath:

  path: "/data/prometheus/pv2"
---

 kubectl create namespace monitoring

kubectl create -f prometheus-pv.yaml -n monitoring

 Add Prometheus Community Helm repo

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts  helm repo update

 Create a prometheus.yaml file using the example below:

Open prometheus.yaml
prometheus.yaml

Install Prometheus Helm Chart using the prometheus.yaml file you created above

helm upgrade -i prometheus prometheus-community/prometheus -f prometheus.yaml -n monitoring

Internal DNS name that the k8s cluster will use to access the prometheus server: prometheus-server.monitoring.svc.cluster.local

Setup Ingress for external access to the Prometheus server
Create the following Ingress yaml file

vi prometheus-ingress.yaml
#prometheus-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
     name: prometheus-ingress
     namespace: monitoring
spec:
     ingressClassName: nginx
     rules:
       - host: prometheus.testmachine.com
          http:
            paths:
                 - path: /
                    pathType: Prefix
                    backend:
                        service:
                             name: prometheus-server
                             port:
                                  number: 9090
Remember to make sure that the host specified in line 10 above matches your configuration.
kubectl apply -f prometheus-ingress.yaml

 Grafana and Loki Setup

Create and apply PV

vi grafana-pv.yaml
#grafana-pv.yaml
kind: PersistentVolume
apiVersion: v1
metadata:
     name: grafana
spec:
     storageClassName:
     capacity:
       storage: 10Gi
    accessModes:
       - ReadWriteOnce
   hostPath:
       path: "/data/prometheus/pv3"
 kubectl apply -f grafana-pv.yaml

 Create and apply PVC

vi grafana-pvc.yaml
#grafana-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
      annotations:
          meta.helm.sh/release-name: grafana
          meta.helm.sh/release-namespace: monitoring
      finalizers:
      - kubernetes.io/pvc-protection
      labels:
         app.kubernetes.io/instance: grafana
         app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: grafana
        app.kubernetes.io/version: 10.3.1
        helm.sh/chart: grafana-7.3.0
    name: grafana
    namespace: monitoring
spec:
     accessModes:
    - ReadWriteOnce
   resources:
       requests:
            storage: 10Gi
    storageClassName:
    volumeMode: Filesystem
    volumeName: grafana

kubectl apply -f grafana-pvc.yaml

Add Grafana Helm repo

helm repo add grafana https://grafana.github.io/helm-charts
helm repo update

Install Grafana Helm Chart

helm install grafana grafana/grafana --set persistence.enabled=true --set persistence.existingClaim=grafana --namespace monitoring

Create and apply PV for Loki

vi loki-pv.yaml
# loki-pv.yaml
kind: PersistentVolume
apiVersion: v1
metadata:
     name: storage-loki-0
spec:
      storageClassName:
      capacity:
         storage: 10Gi
      accessModes:
        - ReadWriteMany
      hostPath:
         path: "/data/prometheus/pv4"

kubectl apply -f loki-pv.yaml

Create and apply PVC for Loki

vi loki-pvc.yaml

#loki-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
       name: storage-loki-0
       namespace: monitoring
spec:
      accessModes:
      - ReadWriteMany
      resources:
           requests:
                storage: 10Gi
        storageClassName:
        volumeMode: Filesystem
        volumeName: storage-loki-0
kubectl apply -f loki-pvc.yaml

Create custom values file for Loki

 vi loki.yaml
# loki.yaml
loki:
          commonConfig:
              replication_factor: 1
         storage:
             type: 'filesystem'
         auth_enabled: false
singleBinary:
     replicas: 1

Loki Helm Chart
helm install -f loki.yaml loki grafana/loki --version 5.43.6 -n monitoring

Install and setup PromTail

helm install promtail grafana/promtail --version 6.15.5 -n monitoring

Setup Ingress for external access to the Grafana server
Create the following Ingress yaml file

vi grafana-ingress.yaml
#grafana-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
      name: grafana-ingress
      namespace: monitoring
spec:
      ingressClassName: nginx
      rules:
       - host: grafana.testmachine.com
         http:
            paths:
              - path: /
                pathType: Prefix
                backend:
                   service:
                      name: grafana
                      port:
                          number: 80

Remember to make sure that the host specified in line 10 above matches your configuration.

kubectl apply -f grafana-ingress.yaml

Retrieve Grafana password

kubectl get secret grafana -o jsonpath="{.data.admin-password}" -n monitoring | base64 -d ; echo

Open the Grafana server in your browser http://grafana.testmachine.com
Username: admin
Password: <as per command above>

On the Home Screen click on ā€œadd your first datasourceā€ option


Select ā€œPrometheusā€ and configure the Connection with the following URL http://prometheus-server.monitoring.svc.cluster.local

Then scroll to the bottom and click ā€œsave and testā€ you should get a confirmation that it was successful

Click again on ā€œdata sourceā€ on the left hand side of the screen


Click on ā€œAdd new data sourceā€

Select ā€œLokiā€ and configure the Connection with the following URL http://loki.monitoring.svc.cluster.local:3100

Then scroll to the bottom and click ā€œsave and testā€ you should get a confirmation that it was successful

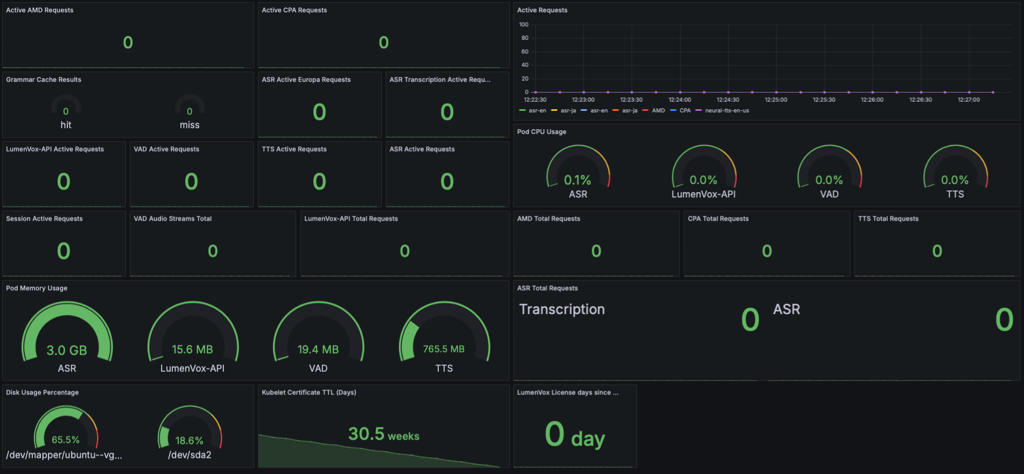

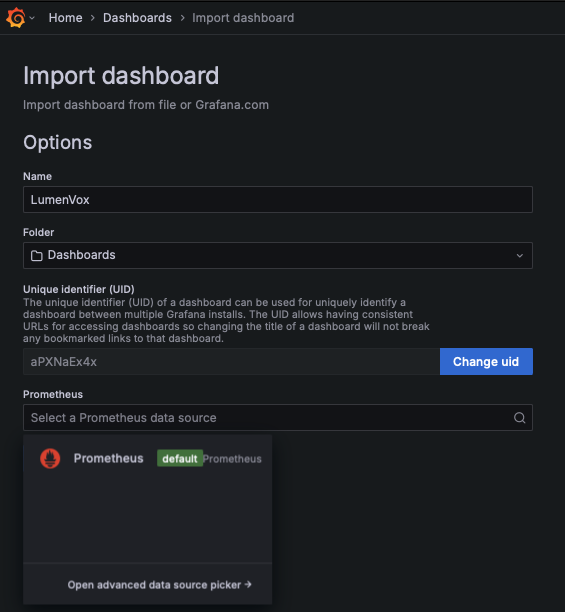

Open image-20240217-123549.png
