Installing LumenVox in Air-Gapped Environments: Ubuntu

Introduction

Typically, modern software deployment relies on active internet connectivity. The containerized version of LumenVox is designed to utilize standard open-source tools, including Kubernetes and Docker, which typically require an internet connection to download and pull necessary images and dependencies for a cluster setup.

However, many enterprise environments operate under strict security policies that block external internet access. To support these air-gapped environments, an alternative installation strategy is required to deploy a functional LumenVox server.

Scope of Installation

This document provides a comprehensive procedure for installing the following components in an isolated network:

Runtimes & Orchestration: Docker, Containerd, and Kubernetes
Networking & Service Mesh: Calico, Linkerd, and Ingress-nginx
Package Management: Helm
Infrastructure Services: Docker Private Registry and External Services (MongoDB, PostgreSQL, RabbitMQ, and Redis)
LumenVox Stack: LumenVox, MRCP-API, and MRCP-Client

Environment Requirements

To facilitate this offline installation, the procedure utilizes a two-server approach:

Online Server: A Linux system connected to the internet to download and stage all required assets.
Offline Server: A secured Linux system with no external network access where the production environment is installed.

While this guide is compatible with Red Hat or Ubuntu, the examples provided are based on Ubuntu 24.04.4 LTS.

Server Information

Server Type	Server Name	Server IP
Online Server	ubuntu-online	172.18.2.71
Offline Server	ubuntu-offline	172.18.2.72

Please ensure that you have curl and rsync installed on both servers.

Online Server Preparation

System Prerequisites

Kubernetes requires specific system settings to manage container networking and memory efficiently.

Disable Swap Space

sudo swapoff -a
sudo sed -i '/swap/ s/^\(.*\)$/#\1/g' /etc/fstab

Configure Kernel Modules

The following modules are required for the Kubernetes pod network (calico) to function correctly.

sudo tee /etc/modules-load.d/k8s.conf <<EOF

ip_tables
overlay
br_netfilter
EOF

sudo modprobe ip_tables
sudo modprobe overlay
sudo modprobe br_netfilter

Network & Security Settings

Adjust the system’s network filtering and disable the firewall to allow inter-pod communication within the cluster.

# Enable bridged traffic and IP forwarding
sudo tee /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF

# Apply sysctl settings without reboot
sudo sysctl --system

# Disable Firewall and AppArmor
sudo systemctl stop ufw
sudo systemctl disable ufw
sudo systemctl stop apparmor
sudo systemctl disable apparmor

Online Asset Staging

Docker and Containerd

Create a lumenvox directory to store the files. In this example, we are saving the files in /lumenvox.

mkdir /lumenvox && cd /lumenvox
mkdir docker-offline && cd docker-offline

# Add GPG key
sudo apt update
sudo apt install ca-certificates curl gnupg
sudo install -m 0755 -d /etc/apt/keyrings
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
sudo chmod a+r /etc/apt/keyrings/docker.gpg

# Setup the repository
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/ubuntu \
  $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
  sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

# Install Docker Engine
sudo apt update
sudo apt install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

# Run Docker without sudo
sudo usermod -aG docker $USER
newgrp docker

The Docker core components can be downloaded from https://download.docker.com/linux/ubuntu/dists

You must download the deb file for your release. Versions change frequently; if these 404, browse the URL above and update the filenames.

cd docker-offline
# Define the base URL for Ubuntu 24.04 (Noble)
BASE_URL="https://download.docker.com/linux/ubuntu/dists/noble/pool/stable/amd64/"
curl -LO "${BASE_URL}containerd.io_1.7.25-1_amd64.deb"
curl -LO "${BASE_URL}docker-ce_27.5.1-1~ubuntu.24.04~noble_amd64.deb"
curl -LO "${BASE_URL}docker-ce-cli_27.5.1-1~ubuntu.24.04~noble_amd64.deb"
curl -LO "${BASE_URL}docker-buildx-plugin_0.20.0-1~ubuntu.24.04~noble_amd64.deb"
curl -LO "${BASE_URL}docker-compose-plugin_2.32.4-1~ubuntu.24.04~noble_amd64.deb"

Kubernetes

Note: This configuration specifically targets v1.33. Replace v1.33 in the URL if you require a different version.

# Add the Kubernetes repository
sudo apt install -y apt-transport-https ca-certificates curl
sudo curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.33/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.33/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list

Download packages

Use the following command to download the Kubernetes binaries and their necessary support tools into a local directory without installing them:

# Create and enter the staging directory
mkdir -p /lumenvox/k8s-offline && cd /lumenvox/k8s-offline

# Download packages and all required dependencies
sudo apt update
apt-get download kubelet kubeadm kubectl kubernetes-cni conntrack socat ebtables

Note: To identify the required images, run the kubeadm config images list command on a running Kubernetes system.

mkdir -p /lumenvox/k8s-images && cd /lumenvox/k8s-images
docker pull registry.k8s.io/kube-apiserver:v1.33.8
docker save registry.k8s.io/kube-apiserver:v1.33.8 > kube-apiserver:v1.33.8.tar

docker pull registry.k8s.io/kube-controller-manager:v1.33.8
docker save registry.k8s.io/kube-controller-manager:v1.33.8 > kube-controller-manager:v1.33.8.tar

docker pull registry.k8s.io/kube-scheduler:v1.33.8
docker save registry.k8s.io/kube-scheduler:v1.33.8 > kube-scheduler:v1.33.8.tar

docker pull registry.k8s.io/kube-proxy:v1.33.8
docker save registry.k8s.io/kube-proxy:v1.33.8 > kube-proxy:v1.33.8.tar

docker pull registry.k8s.io/coredns/coredns:v1.12.0
docker save registry.k8s.io/coredns/coredns:v1.12.0 > coredns:v1.12.0.tar

docker pull registry.k8s.io/pause:3.10
docker save registry.k8s.io/pause:3.10 > pause:3.10.tar

docker pull registry.k8s.io/etcd:3.5.24-0
docker save registry.k8s.io/etcd:3.5.24-0 > etcd:3.5.24-0.tar

Calico

Download the essential container images for the Calico CNI. These components are critical for establishing the Kubernetes pod network and managing inter-service communication and security firewalls.

mkdir -p /lumenvox/calico-offline && cd /lumenvox/calico-offline

# Downloading the instllation manifest
curl -O https://raw.githubusercontent.com/projectcalico/calico/v3.27.0/manifests/calico.yaml

# List the image information
grep image: calico.yaml | awk '{print $2}' | sort -u

# Pull the required images and save them as .tar archive
docker pull docker.io/calico/cni:v3.27.0
docker save calico/cni:v3.27.0 > cni:v3.27.0.tar

docker pull docker.io/calico/kube-controllers:v3.27.0
docker save calico/kube-controllers:v3.27.0 > kube-controllers:v3.27.0.tar

docker pull docker.io/calico/node:v3.27.0
docker save calico/node:v3.27.0 > node:v3.27.0.tar

Crictl

Download and install the crictl utility. This tool is required for inspecting and managing your container runtime environment during the installation process.

cd /lumenvox/crictl-offline
curl -LO https://pkgs.k8s.io/core:/stable:/v1.33/deb/amd64/cri-tools_1.33.0-1.1_amd64.deb

Linkerd

In a Kubernetes environment, Linkerd is used to manage the complex networking between microservices.

mkdir -p /lumenvox/linkerd-offline && cd /lumenvox/linkerd-offline
curl -O https://assets.lumenvox.com/kubeadm/linkerd.tar
tar -xvf linkerd.tar

Helm

Download and initialize the Helm binary. Helm is the required package manager used to install, upgrade, and configure the LumenVox Kubernetes charts.

mkdir -p /lumenvox/helm-offline && cd /lumenvox/helm-offline
curl -O https://get.helm.sh/helm-v3.19.2-linux-amd64.tar.gz
tar -zxvf helm-v3.19.2-linux-amd64.tar.gz
sudo mv linux-amd64/helm /usr/local/bin/helm

Add the LumenVox Helm Repository

mkdir -p /lumenvox/helm-offline && cd /lumenvox/helm-offline
curl -O https://get.helm.sh/helm-v3.19.2-linux-amd64.tar.gz
tar -zxvf helm-v3.19.2-linux-amd64.tar.gz
sudo mv linux-amd64/helm /usr/local/bin/helm

Downloading LumenVox Helm charts, the following command will create a lumenvox folder on the current directory with all helm charts:

helm fetch lumenvox/lumenvox --untar

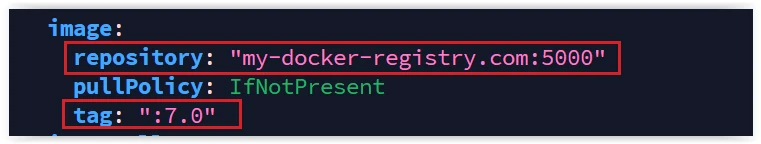

Open the lumenvox/values.yaml file and update the image repository settings to point to your private Docker registry. Ensure that the image tag matches the one used during the initial push.

Note: In this example for v7.0, the tag should be set to :7.0.

cd /lumenvox/helm-offline/lumenvox
vi values.yaml

For the repository, set the value to “my-docker-registry.com:5000”

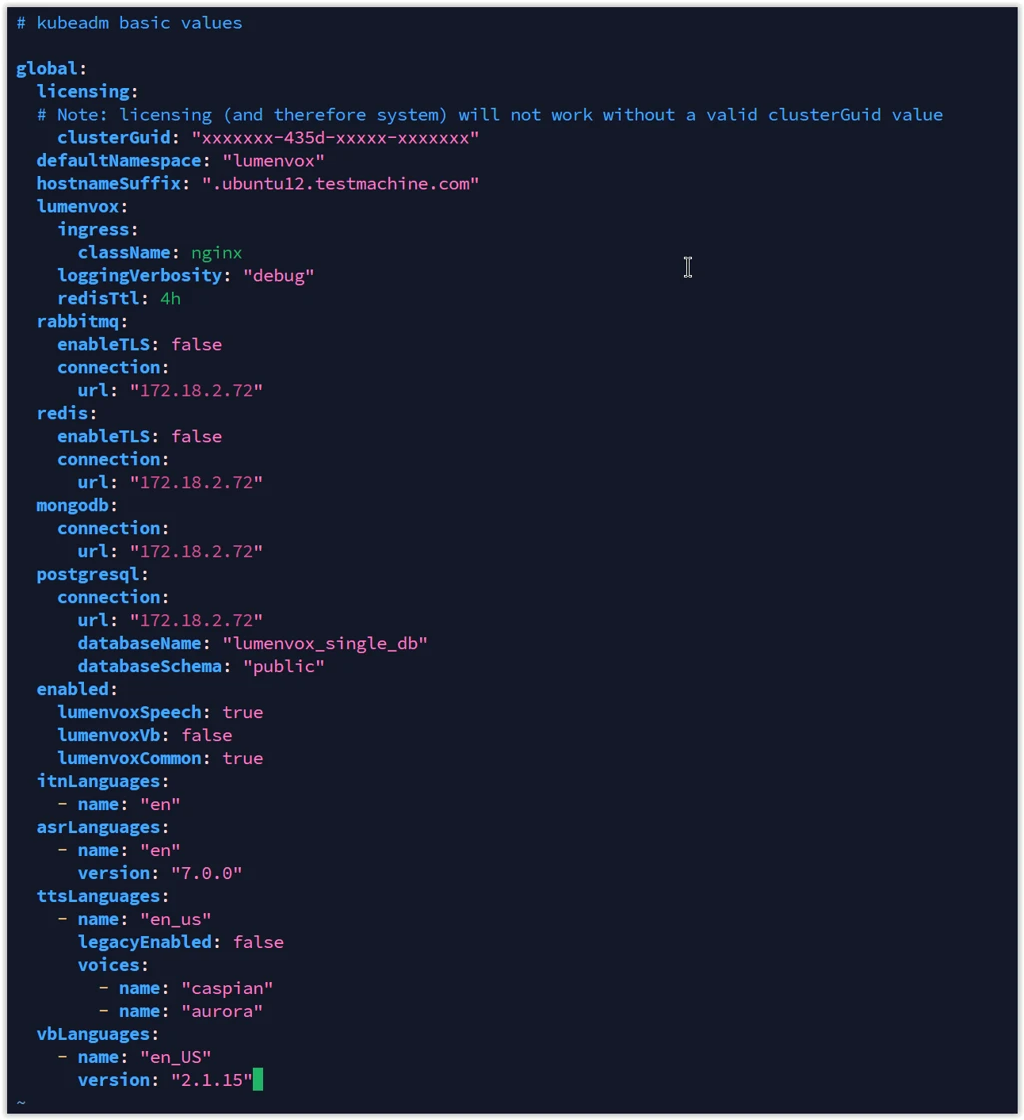

Downloading the values.yaml from Github

cd /lumenvox
curl -O https://raw.githubusercontent.com/lumenvox/containers-quick-start/master/values.yaml

LumenVox Images and External Services

Use the sample script below to pull and archive the LumenVox v7.0 and external service images. Save the script as download_lv_images.sh in the /lumenvox directory. When executed, it will pull the necessary images and compress them into a single portable file: lv_images-offline.tar.gz.

#!/bin/bash

IMAGES=(
  "lumenvox/admin-portal:7.0"
  "lumenvox/archive:7.0"
  "lumenvox/asr:7.0"
  "lumenvox/cloud-init-tools:7.0"
  "lumenvox/configuration:7.0"
  "lumenvox/deployment:7.0"
  "lumenvox/deployment-portal:7.0"
  "lumenvox/file-store:7.0"
  "lumenvox/grammar:7.0"
  "lumenvox/itn:7.0"
  "lumenvox/license:7.0"
  "lumenvox/lumenvox-api:7.0"
  "lumenvox/management-api:7.0"
  "lumenvox/neural-tts:7.0"
  "lumenvox/reporting-api:7.0"
  "lumenvox/resource:7.0"
  "lumenvox/session:7.0"
  "lumenvox/storage:7.0"
  "lumenvox/vad:7.0"
  "lumenvox/cloud-logging-sidecar:7.0"
  "lumenvox/mrcp-api:7.0"
  "lumenvox/simple_mrcp_client:latest"
  "lumenvox/diag-tools:jammy-4.2.0"
  "lumenvox/license-reporter-tool:latest"
  "docker.io/rabbitmq:4.1.8-management"
  "docker.io/redis:8.2.4-alpine"
  "docker.io/mongo:8.2"
  "docker.io/postgres:17.5"
)

SAVE_DIR="/lumenvox/lv_images-offline"
mkdir -p "$SAVE_DIR"

for IMAGE in "${IMAGES[@]}"; do
  echo "----------------------------------------"
  echo "Processing: $IMAGE"

  if docker pull "$IMAGE"; then
    # Sanitize filename: replace / and : with _
    FILE_NAME=$(echo "$IMAGE" | tr '/:' '_')

    echo "Saving to $SAVE_DIR/${FILE_NAME}.tar"
    docker save -o "$SAVE_DIR/${FILE_NAME}.tar" "$IMAGE"
  else
    echo "ERROR: Failed to pull $IMAGE. Skipping..."
  fi
done

echo "----------------------------------------"
echo "Compressing all images into one bundle..."
tar czvf lv_images-offline.tar.gz -C /lumenvox lv_images-offline

echo "Done! Final bundle: lv_images-offline.tar.gz"

LumenVox Models

Use the sample script below to pull and archive the LumenVox model files. Save this script as download_lv_models.sh in the /lumenvox directory. Upon execution, the script will download the required files and save them to the /lumenvox/lv_models-offline directory.

#!/bin/bash

# Directory to save files
DOWNLOAD_DIR="/lumenvox/lv_models-offline"
mkdir -p "$DOWNLOAD_DIR"

# List of URLs to download
URLS=(
  "https://assets.lumenvox.com/model-files/asr/asr_decoder_model_en_gb-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/asr/asr_decoder_model_en_us-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/asr/asr_encoder_model_en-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/asr/asr_lang_model_en_us.manifest"
  "https://assets.lumenvox.com/model-files/asr/asr_lib_model_en_us.manifest"
  "https://assets.lumenvox.com/model-files/dnn/backend_dnn_model_7-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/dnn/backend_dnn_model_p.manifest"
  "https://assets.lumenvox.com/model-files/asr/dist_package_model_asr-7.0.0.manifest"
  "https://assets.lumenvox.com/model-files/dnn/dist_package_model_en.manifest"
  "https://assets.lumenvox.com/model-files/dnn/dist_package_model_itn-7.0.3.manifest"
  "https://assets.lumenvox.com/model-files/neural_tts/dist_package_model_neural_tts.manifest"
  "https://assets.lumenvox.com/model-files/itn/itn_dnn_model_en.manifest"
  "https://assets.lumenvox.com/model-files/asr/multilingual_confidence_model.manifest"
  "https://assets.lumenvox.com/model-files/neural_tts/neural_tts_en_us_aurora-8.manifest"
  "https://assets.lumenvox.com/model-files/neural_tts/neural_tts_en_us_caspian-8.manifest"
  "https://assets.lumenvox.com/model-files/nlu/nlu_model_en.manifest"
  "https://assets.lumenvox.com/model-files/tts/tts_base_lang_data.manifest"
  "https://assets.lumenvox.com/model-files/asr/1.0.0/asr_lib_model_en_us-1.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/4.1.0/multilingual_confidence_model-4.1.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/7.0.0/asr_decoder_model_en_gb-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/7.0.0/asr_decoder_model_en_us-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/7.0.0/asr_encoder_model_en-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/7.0.0/dist_package_model_asr-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/asr/asr_lang_model_en_us.tar.gz"
  "https://assets.lumenvox.com/model-files/dnn/1.0.0/backend_dnn_model_p-1.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/dnn/1.0.3/dist_package_model_en-1.0.3.tar.gz"
  "https://assets.lumenvox.com/model-files/dnn/7.0.0/backend_dnn_model_7-7.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/dnn/7.0.3/dist_package_model_itn-7.0.3.tar.gz"
  "https://assets.lumenvox.com/model-files/itn/3.0.1/itn_dnn_model_en-3.0.1.tar.gz"
  "https://assets.lumenvox.com/model-files/neural_tts/2.0.0/dist_package_model_neural_tts-2.0.0.tar.gz"
  "https://assets.lumenvox.com/model-files/neural_tts/8.1.0/neural_tts_en_us_aurora-8.1.0.tar.gz"
  "https://assets.lumenvox.com/model-files/neural_tts/8.1.0/neural_tts_en_us_caspian-8.1.0.tar.gz"
  "https://assets.lumenvox.com/model-files/nlu/1.0.4/nlu_model_en-1.0.4.tar.gz"
  "https://assets.lumenvox.com/model-files/tts/tts_base_lang_data.tar.gz"
)

# Download each file
for URL in "${URLS[@]}"; do
  FILE_NAME=$(basename "$URL")
  echo "Downloading $FILE_NAME..."
  curl -fLo "${DOWNLOAD_DIR}/${FILE_NAME}" "$URL" || echo "Failed to download $URL"
done

echo "✅ All downloads attempted. Files are in: $DOWNLOAD_DIR"

Media Server and External Services

Downloading the external services, mrcp-api and simple_mrcp_client

mkdir -p /lumenvox/services-offline && cd /lumenvox/services-offline
git clone https://github.com/lumenvox/mrcp-api.git
git clone https://github.com/lumenvox/mrcp-client.git
git clone https://github.com/lumenvox/external-services.git
cd external-services
curl -O https://raw.githubusercontent.com/lumenvox/external-services/master/docker-compose.yaml
curl -O https://raw.githubusercontent.com/lumenvox/external-services/master/rabbitmq.conf
curl -O https://raw.githubusercontent.com/lumenvox/external-services/master/.env

Ingress-nginx

mkdir -p /lumenvox/ingress-nginx-offline && cd /lumenvox/ingress-nginx-offline
helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm fetch ingress-nginx/ingress-nginx --untar
docker pull registry.k8s.io/ingress-nginx/controller:v1.14.1
docker save registry.k8s.io/ingress-nginx/controller:v1.14.1 > controller:v1.14.1.tar
docker pull registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.5.2
docker save registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.5.2 > kube-webhook-certgen:v1.5.2.tar

Docker Private Registry

A Docker private registry is a container image server that your organization controls. Instead of pulling and pushing images to a public service like Docker Hub, you store them in your own registry, allowing only authorized users and systems to access them. We will use docker compose to set up a Docker private registry to store and install the LumenVox and Ingress-Nginx Helm charts.

cd /lumenvox/docker-offline
docker pull registry:2
docker save registry:2  -o registry.tar
mkdir registry
cd registry
mkdir data

Create a file named docker-compose.yaml to map port 5000 and ensureensures your images are saved permanently in the ./data folder

sudo tee /lumenvox/docker-offline/registry/docker-compose.yaml<<EOF
services:
  registry:
    image: registry:2
    container_name: private-registry
    ports:
      - "5000:5000"
    volumes:
      - ./data:/var/lib/registry
    restart: always
EOF

Start the docker registry

docker compose up -d

Docker, by default, refuses to push to a registry that doesn’t use HTTP. The following lines must be added to the /etc/docker/daemon.json file; if it does not exist, it must be created. Be sure to use your private docker registry name and port:

sudo tee /etc/docker/daemon.json <<EOF
{
  "insecure-registries" : ["my-docker-registry.com:5000"]
}
EOF

Reload and Restart docker

sudo systemctl daemon-reload
sudo systemctl restart docker

Add an entry for my-docker-registry.com to the /etc/hosts file. Replace 172.18.2.71 with the actual IP address of the online server.

172.18.2.71  my-docker-registry.com

Tag and Push ingress-nginx to the local registry.

cd /lumenvox/ingress-nginx-offline
docker tag registry.k8s.io/ingress-nginx/controller:v1.14.1 my-docker-registry.com:5000/controller:v1.14.1
docker push my-docker-registry.com:5000/controller:v1.14.1
docker tag registry.k8s.io/ingress-nginx/kube-webhook-certgen:v1.5.2 my-docker-registry.com:5000/kube-webhook-certgen:v1.5.2
docker push my-docker-registry.com:5000/kube-webhook-certgen:v1.5.2

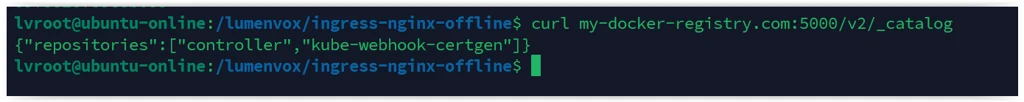

Confirm the images are now in the private registry

curl my-docker-registry.com:5000/v2/_catalog

The output should look similar to this:

Use the sample shell script below to tag and push the LumenVox and external-service images to your local registry. Save this content as load_push_local_registry.sh in the /lumenvox directory, then execute the script to initiate the pull of the LumenVox model files.

#!/bin/bash

# Registry config
REGISTRY="my-docker-registry.com:5000"
IMAGE_DIR="/lumenvox/lv_images-offline"

# Ensure the registry string doesn't end with a slash for clean concatenation
REGISTRY="${REGISTRY%/}"

for TAR in "$IMAGE_DIR"/*.tar; do
    echo "----------------------------------------------------------"
    echo "Processing $TAR..."

    # Capture the full name:tag from the docker load output
    IMAGE_FULL_NAME=$(docker load -i "$TAR" | awk '/Loaded image:/ { print $3 }')


    if [ -z "$IMAGE_FULL_NAME" ]; then
        echo "Error: Failed to extract image name from $TAR"
        continue
    fi

    echo "Found image: $IMAGE_FULL_NAME"

    # 1. Remove 'docker.io/' prefix if it exists
    CLEAN_NAME="${IMAGE_FULL_NAME#docker.io/}"

    # 2. Remove 'lumenvox/' prefix if it exists
    # This turns 'lumenvox/mrcp-api:7.0' into 'mrcp-api:7.0'
    CLEAN_NAME="${CLEAN_NAME#lumenvox/}"

    TARGET_IMAGE="${REGISTRY}/${CLEAN_NAME}"

    echo "Tagging as: $TARGET_IMAGE"
    docker tag "$IMAGE_FULL_NAME" "$TARGET_IMAGE"

    echo "Pushing: $TARGET_IMAGE"
    docker push "$TARGET_IMAGE"
done

echo "----------------------------------------------------------"
echo "Done."

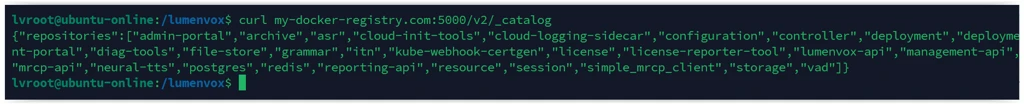

To List the Content of the Registry

curl my-docker-registry.com:5000/v2/_catalog

The output should look similar to this:

Offline Server Preparation

System Prerequisites

Kubernetes requires specific system settings to manage container networking and memory efficiently.

Disable Swap Space

sudo swapoff -a
sudo sed -i '/swap/ s/^\(.*\)$/#\1/g' /etc/fstab

Configure Kernel Modules

The following modules are required for the Kubernetes pod network (calico) to function correctly.

sudo tee /etc/modules-load.d/k8s.conf <<EOF
ip_tables
overlay
br_netfilter
EOF

sudo modprobe ip_tables
sudo modprobe overlay
sudo modprobe br_netfilter

Network & Security Settings

Adjust the system’s network filtering and disable the firewall to allow inter-pod communication within the cluster.

# Enable bridged traffic and IP forwarding
sudo tee /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF

# Apply sysctl settings without reboot
sudo sysctl --system

# Disable Firewall and AppArmor
sudo systemctl stop ufw
sudo systemctl disable ufw
sudo systemctl stop apparmor
sudo systemctl disable apparmor

Modify /etc/hosts: Add entries for the offline server and the private repository (hosted on the online server) to ensure proper name resolution across your environment.

sudo vi /etc/hosts
172.18.2.72 ubuntu-offline
172.18.2.71 my-docker-registry.com

Copy Staging Files From Online Server to Offline Server

We use rsync to synchronize folders and files between servers. Please ensure rsync is installed on both the source and destination machines. Alternatively, scp may be used if rsync is unavailable in your environment.

sudo mkdir /lumenvox
rsync -avzP user@remote_host:/path/to/remote/folder /path/to/local/destination/

Docker and Containerd

Installing Docker and Containerd

cd /lumenvox/docker-offline
sudo dpkg -i *.deb
sudo systemctl enable --now docker
sudo systemctl enable --now containerd

Configuring Containerd to use the private docker registry

containerd config default | sudo tee /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup \= false/SystemdCgroup \= true/g' /etc/containerd/config.toml
sudo sed -i 's|sandbox_image = "registry.k8s.io/pause:3.8"|sandbox_image = "registry.k8s.io/pause:3.10"|g' /etc/containerd/config.toml
sudo sed -i '/\[plugins."io.containerd.grpc.v1.cri".registry\]/,/\[/ s|config_path = .*|config_path = "/etc/containerd/certs.d"|' /etc/containerd/config.toml
sudo mkdir -p /etc/containerd/certs.d/my-docker-registry.com:5000

#create the host.toml file#
cat <<EOF | sudo tee /etc/containerd/certs.d/my-docker-registry.com:5000/hosts.toml
server = "http://my-docker-registry.com:5000"

[host."http://my-docker-registry.com:5000"]
  capabilities = ["pull", "resolve"]
  skip_verify = true
EOF

sudo systemctl restart containerd
sudo usermod -aG docker $USER
newgrp docker

Configure Insecure Registries

sudo tee /etc/docker/daemon.json <<EOF
{
  "insecure-registries": ["my-docker-registry.com:5000"]
}
EOF
sudo systemctl restart docker

To List the Content of the private docker registry on the online server.

curl my-docker-registry.com:5000/v2/_catalog

The output should look similar to this:

Crictl

cd /lumenvox/crictl-offline
sudo dpkg -i cri-tools_1.33.0-1.1_amd64.deb
sudo crictl config --set runtime-endpoint=unix:///run/containerd/containerd.sock

Kubernetes

cd /lumenvox/k8s-offline/
sudo dpkg -i *.deb
sudo systemctl enable --now containerd

Loads Kubernetes image onto the offline server

cd /lumenvox/k8s-images
sudo ctr -n k8s.io images import coredns:v1.12.0.tar
sudo ctr -n k8s.io images import etcd:3.5.24-0.tar
sudo ctr -n k8s.io images import kube-apiserver:v1.33.8.tar
sudo ctr -n k8s.io images import kube-controller-manager:v1.33.8.tar
sudo ctr -n k8s.io images import kube-proxy:v1.33.8.tar
sudo ctr -n k8s.io images import kube-scheduler:v1.33.8.tar
sudo ctr -n k8s.io images import pause:3.10.tar

Initialize the Control Plane

sudo kubeadm init --apiserver-advertise-address=172.18.2.72 --kubernetes-version=v1.33.8

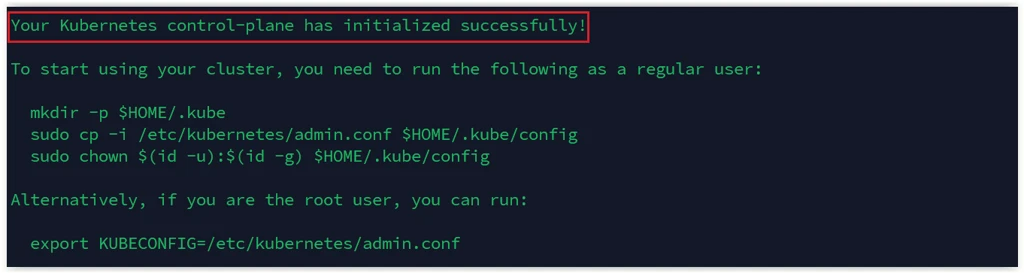

You should see the following if the control plane initializes successfully. This could take up to 5 minutes.

Setup the kubectl cli for the user

mkdir -p $HOME/.kube
sudo cp /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

Untaint Node - replace <node-name> with the node name

kubectl get node
kubectl taint node <node-name> node-role.kubernetes.io/control-plane-

The NotReady status is perfectly normal at this stage. This is because the Container Network Interface (Calico) has not been installed yet.

Calico

cd /lumenvox/calico-offline
sudo ctr -n k8s.io images import kube-controllers:v3.27.0.tar
sudo ctr -n k8s.io images import node:v3.27.0.tar
sudo ctr -n k8s.io images import cni:v3.27.0.tar
kubectl apply -f calico.yaml

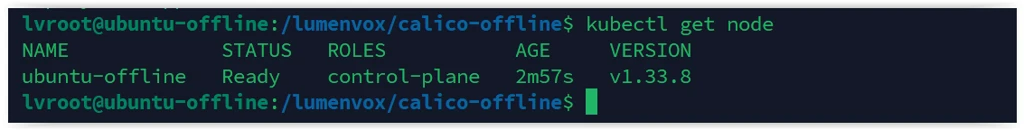

The node should now be in Ready status

kubectl get node

Linkerd

cd /lumenvox/linkerd-offline
sudo chmod +x linkerd_cli_installer_offline.sh
sudo ctr -n k8s.io images import controller:edge-24.8.2.tar
sudo ctr -n k8s.io images import metrics-api:edge-24.8.2.tar
sudo ctr -n k8s.io images import policy-controller:edge-24.8.2.tar
sudo ctr -n k8s.io images import prometheus:v2.48.1.tar
sudo ctr -n k8s.io images import proxy:edge-24.8.2.tar
sudo ctr -n k8s.io images import proxy-init:v2.4.1.tar
sudo ctr -n k8s.io images import tap:edge-24.8.2.tar
sudo ctr -n k8s.io images import web:edge-24.8.2.tar
./linkerd_cli_installer_offline.sh
export PATH=$PATH:~/.linkerd2/bin
linkerd check --pre
linkerd install --crds | kubectl apply -f -
linkerd install | kubectl apply -f -
linkerd check
linkerd viz install | kubectl apply -f -
kubectl delete cronjob linkerd-heartbeat -n linkerd

Helm

cd /lumenvox/helm-offline
tar -zxvf helm-v3.19.2-linux-amd64.tar.gz
sudo mv linux-amd64/helm /usr/local/bin/helm

LumenVox and External Services

Create the lumenvox namespace

kubectl create ns lumenvox

Open the docker-compose.yaml file and update the image: tags to point to your private registry instead of the default repository.

# Copy the external-services folder to the home directory
cp -r /lumenvox/services-offline/external-services/ ~
cd ~/external-services
vi docker-compose.yaml
### mongodb
image: my-docker-registry.com:5000/mongo:8.2

### postgresql
image: my-docker-registry.com:5000/postgres:17.5

### rabbitmq
image: my-docker-registry.com:5000/rabbitmq:4.1.8-management

### redis
image: my-docker-registry.com:5000/redis:8.2.4-alpine

Open the .env file and update the password field with your specific credentials.

vi .env

#-------------------------#
# MongoDB Configuration
#-------------------------#
MONGO_INITDB_ROOT_USERNAME=lvuser
MONGO_INITDB_ROOT_PASSWORD=mongo1234

#-------------------------#
# PostgreSQL Configuration
#-------------------------#
# Password for the root 'postgres' user
#POSTGRESQL__POSTGRES_PASSWORD=postgresroot1234
# Credentials for new user
POSTGRES_USER=lvuser
POSTGRES_PASSWORD=postgres1234

#-------------------------#
# RabbitMQ Configuration
#-------------------------#
RABBITMQ_USERNAME=lvuser
RABBITMQ_PASSWORD=rabbit1234

#-------------------------#
# Redis Configuration
#-------------------------#
REDIS_PASSWORD=redis1234

#-------------------------#
# Restart Configuration
#-------------------------#
RESTART_POLICY=always

Start the external services

docker compose up -d

Check if the external services are running

docker ps

Follow the steps below to create your Kubernetes secrets. Before running the commands, ensure you replace all $PASSWORD placeholders with the actual values defined in your .env file.

kubectl create secret generic mongodb-existing-secret --from-literal=mongodb-root-password=$MONGO_INITDB_ROOT_PASSWORD -n lumenvox

kubectl create secret generic postgres-existing-secret --from-literal=postgresql-password=$POSTGRES_PASSWORD  -n lumenvox

kubectl create secret generic rabbitmq-existing-secret --from-literal=rabbitmq-password=$RABBITMQ_PASSWORD -n lumenvox

kubectl create secret generic redis-existing-secret --from-literal=redis-password=$REDIS_PASSWORD -n lumenvox

Edit the values.yaml with the clusterGUID, IP address of the external services ASR language(s) and TTS voice(s) to install.

cd /lumenvox
vi values.yaml

You must create a self-signed TLS certificate key pair. This pair will be used to create the required Kubernetes Secrets that enable secure communication for the speech components.

Create Self-Signed Certificate key

openssl genrsa -out server.key 2048

Create Self-Signed Certificate

Make sure the subjectAltName matches the hostnameSuffix in the values.yaml file.

openssl req -new -x509 -sha256 -key server.key -out server.crt -days 3650 \
-addext "subjectAltName = DNS:lumenvox-api.ubuntu12.testmachine.com, \
DNS:biometric-api.lumenvox-api.ubuntu12.testmachine.com, \
DNS:management-api.lumenvox-api.ubuntu12.testmachine.com, \
DNS:reporting-api.lumenvox-api.ubuntu12.testmachine.com, \
DNS:admin-portal.lumenvox-api.ubuntu12.testmachine.com, \
DNS:deployment-portal.lumenvox-api.ubuntu12.testmachine.com"

Create the speech-tls-secret

cd /lumenvox
kubectl create secret tls speech-tls-secret --key server.key --cert server.crt -n lumenvox

Installing LumenVox

cd /lumenvox
helm install lumenvox helm-offline/lumenvox -n lumenvox -f values.yaml

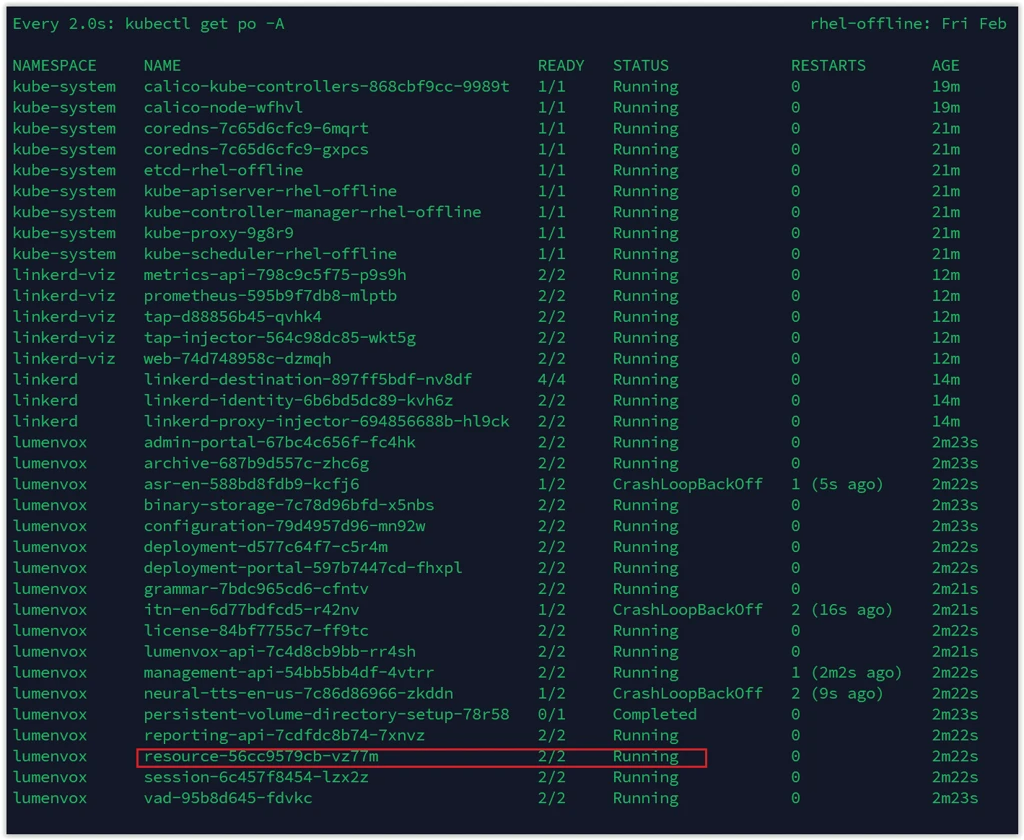

watch kubectl get po -A

Wait for resource pods to come online, the itn-en, asr-en and neural-tts-en-us will fail and it’s expected because we have not loaded the model files.

Loading the model files

helm uninstall lumenvox -n lumenvox
helm install lumenvox helm-offline/lumenvox -n lumenvox -f values.yaml

This is needed for the persistent volume job to set the appropriate permssion for the /data directory.

Copy the .manifest to/data/lang/manifest

cd /lumenvox/lv_models-offline
cp -p *.manifest /data/lang/manifests/

Copy the .tar.gz to /data/lang/downloads

cd /lumenvox/lv_models-offline
cp -p *.manifest /data/lang/manifests/

Restarting the deployment

kubectl rollout restart deployment -n lumenvox

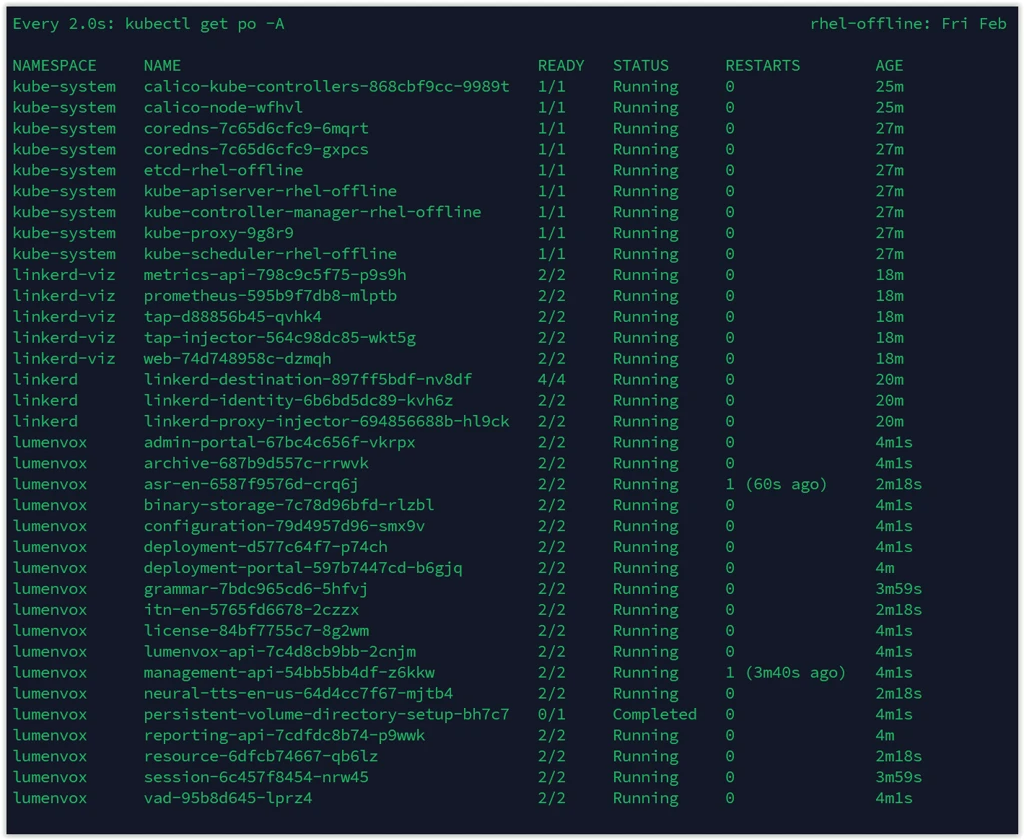

All pods should now be running

Ingress-Nginx

Configure ingress-nginx to pull from the docker private repository

cd /lumenvox/ingress-nginx-offline
vi ingress-nginx/values.yaml

Search for “controller” in the file and set the image, repository, tag, digest and digestChroot values as shown below:

image: "controller"
repository: "my-docker-registry.com:5000/controller"
tag: "v1.14.1"
digest: null
digestChroot: null

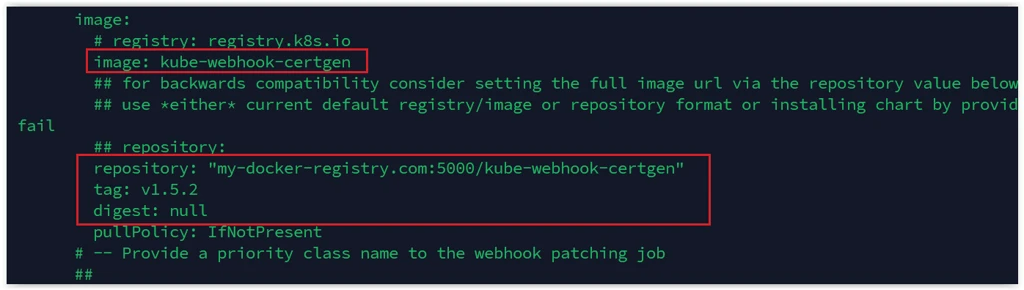

Search for “kube-webhook” in the file and set the image, repository, tag and digest values as shown below:

image: “kube-webhook-certgen”
repository: "my-docker-registry.com:5000/kube-webhook-certgen"
tag: v1.5.2
digest: null

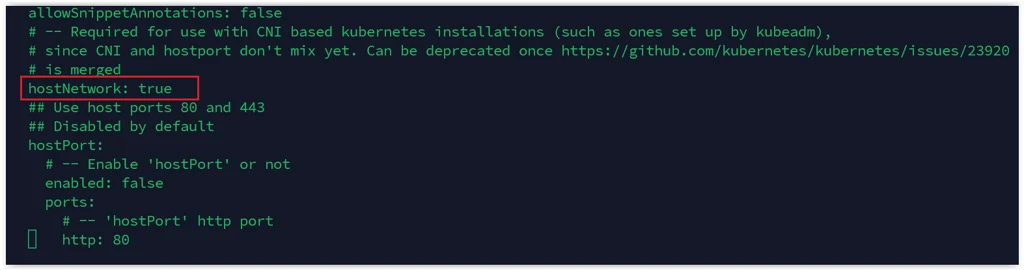

Search for “hostNetwork” in the file and set it to “true”.

hostNetwork: true

Installing ingress-nginx

helm upgrade --install ingress-nginx ./ingress-nginx -n ingress-nginx --create-namespace --set controller.hostNetwork=true --version 4.14.1 -f ./ingress-nginx/values.yaml

MRCP-API

Move the mrcp-api to your home directory then configure Docker to pull the mrcp-api image from the specified private registry.

cd /lumenvox/services-offline/
cp -r mrcp-api ~
cd ~/mrcp-api/docker/

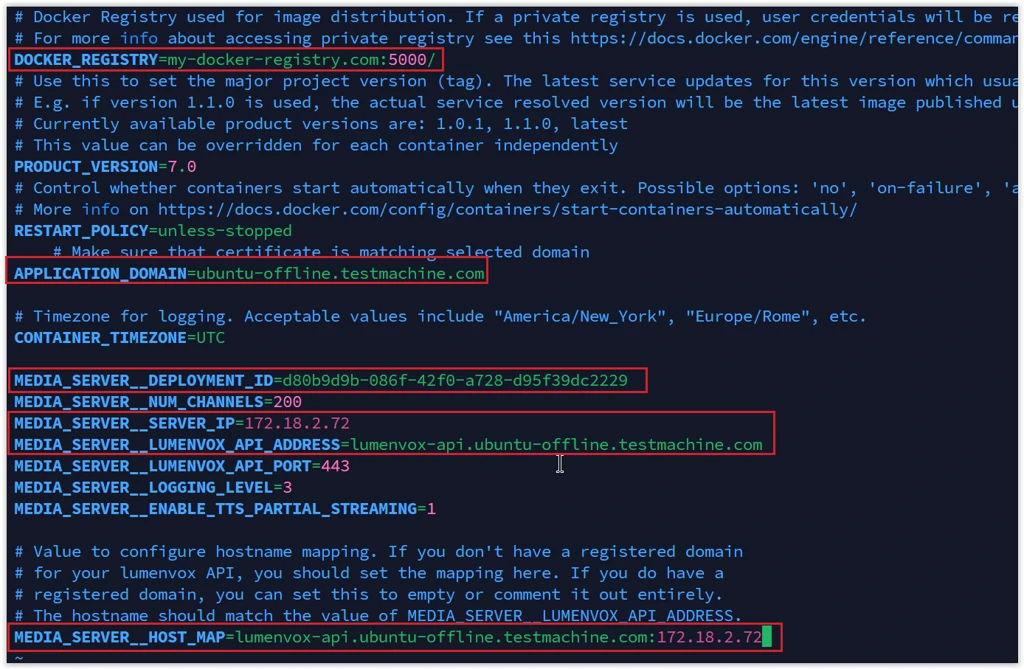

vi .env
docker compose up -d

DOCKER_REGISTRY=my-docker-registry.com:5000/

Copy the server.crt certificate to the mrcp-api

cd ~/mrcp-api/docker
docker compose down
sudo cp /lumenvox/server.crt certs
docker compose up -d

MRCP-CLIENT

Move the mrcp-client to your home directory, then configure Docker to pull the simple_mrcp_client image from the specified private registry.

cd ~/mrcp-api/docker
docker compose down
sudo cp /lumenvox/server.crt certs
docker compose up -d

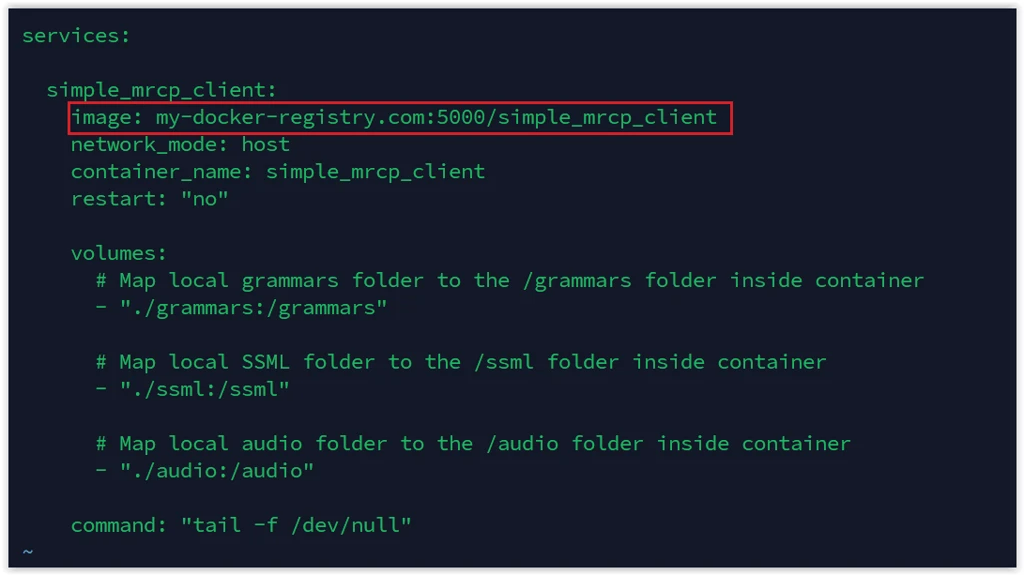

image: my-docker-registry.com:5000/simple_mrcp_client

Creating a deployment - Please reference the Access the Admin Portal to Create a Deployment section in the Setup via quick start (kubeadm) guide - https://lumenvox.capacity.com/article/863702/setup-via-quick-start--kubeadm-

Licensing the server - Please reference the Setting up the license reporter tool to license a server in an air-gap environment -

https://lumenvox.capacity.com/article/631630/setting-up-the-license-reporter-tool

Was this article helpful?
