GVP 8.5 ASR setup
Create Application Template
First, you need to create a new Application Template. In the Genesys Administration web page, go to the Provisioning Tab. Under Environment on the left hand side navigation, open Application Templates.

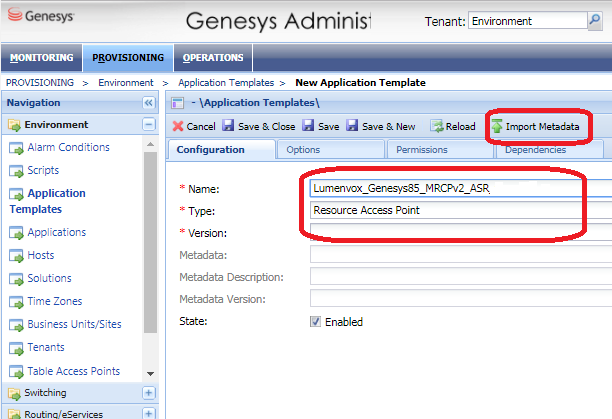

- Click the New button to create a new Application Template.
- Give the Template a name.
- Choose Resource Access Point as the Type.
- Click the Import Metadata button.
- Click the Add button on the popup dialog
- Choose the Lumenvox_Genesys85_MRCPv2_ASR_template.xml file downloaded from LumenVox
(this file is contained in the attachment on the bottom of this knowledge base article)
- Back at the template screen, move to the Options tab.
- Click the Choose file button.
- Click Add
- Choose the Lumenvox_Genesys85_MRCPv2_ASR_config.xml file downloaded from LumenVox
Note
The file Lumenvox_Genesys85_MRCPv2_ASR_config.xml is contained in the attachment on the bottom of this knowledge base article.
- This should fill in a list of configuration options (as shown)
- Click Save & Close
Create ASR MRCP Application
- Go to Applications on the left hand Navigation.
- On the right hand Tasks list, click Create New Application
- Click Browse For Template
- Find the Application Template created in the previous section
- Highlight it and click Ok.
- Click Next
- Click Next again (this page requires no action)
- Give the application a meaningful name
- Pick a host from the list of hosts setup in your environment
Note
The host you choose is not used for anything, if desired, you can add a host corresponding to the server you have installed LumenVox on, but it is not necessary.
- Click Next again (this page requires no action)
- The new application will automatically open to the Options tab.
Warning
In some cases you may see "Load Failed" in the options, in this case just change the View from Mandatory Options to Advanced View (Options).
- Edit the option Speech Resource URI
The value depends on where and how you have installed LumenVox. The string looks like this:
rtsp://LUMENVOX_SERVER_HOST:LUMENVOX_MRCPV1_PORT/media/speechrecognizer
So, if you have installed LumenVox on a server with the IP address 192.168.0.20 with default settings for the MRCPv1 port, the string would be:
rtsp://192.168.0.20:554/media/speechrecognizer
The host can be a DNS name as well, example
rtsp://lumenovox-mrcp.mycompany.com:554/media/speechrecognizer
- Next, go to the Configuration tab
- Open up the Server Info section
- Click on the Add button in the Listening Ports
- Set the port to 9999
Note
Port 9999 is an arbitrarily chosen number. This value is not used for anything in this case, but it is required by the Genesys Administrator interface to be filled out.
- Save and Close the Application.
Adding MRCP resource access application to the Media Control Platform
In order for Genesys to use the new MRCP connection, you need to add it to the Media Control Platform (MCP) connections.
- Find your Media Control Platform (MCP) application, and open it for editing
- In the Connections section, click Add
- Find the MRCP application created in the previous section and choose it.
- Click the newly added application in the list
- Click Edit
Note
If you click on the text of the application name in the list, it may open up that application in a popup windows for editing. If this happens, just close that window. You just want the line highlighted as shown below, before pressing Edit.
- Change to the Advanced tab
- In the Application Parameters, enter Provisiontype=primary
- Click Ok
- Save & Close the MCP application
- You will need to restart the MCP application before the changes will fully take effect
Testing
To test speech recognition functionality, you can use the SimpleTest app supplied by Lumenvox. This test requires that TTS has also already been set up.
Attachments
| Lumenvox_Genesys85_MRCPv2_ASR_options.xml | 875 b | Download File | |
| Lumenvox_Genesys85_MRCPv2_ASR_template.xml | 16.2 Kb | Download File |
